Automated Water Heater Testing Systems
Make sure your water heaters meet quality and safety standards. Simplifies testing, reporting and certification with accurate, compliant results.
The water heater testing system for storage water heaters is developed as per IS 2082 and European standards. It automatically records cut-in and cut-off temperatures, pressure, heater on/off cycles and power consumption with timestamps for the number of cycles defined in the standard.
The necessary calculations are carried out and a consolidated report is generated automatically by the software after the specified number of cycles or specified duration (24 hrs / 48 hrs).
Tests performed
- Standing Loss Test
- Profile Test
- V40 Test
- Water Mass Calculation
Features
- Automatic logging of cut-in / cut-off temperatures and pressure
- Heater on/off cycle and power consumption recording with timestamps
- Runs for a defined number of cycles or 24 / 48 hour durations
- Automatic calculations and consolidated report

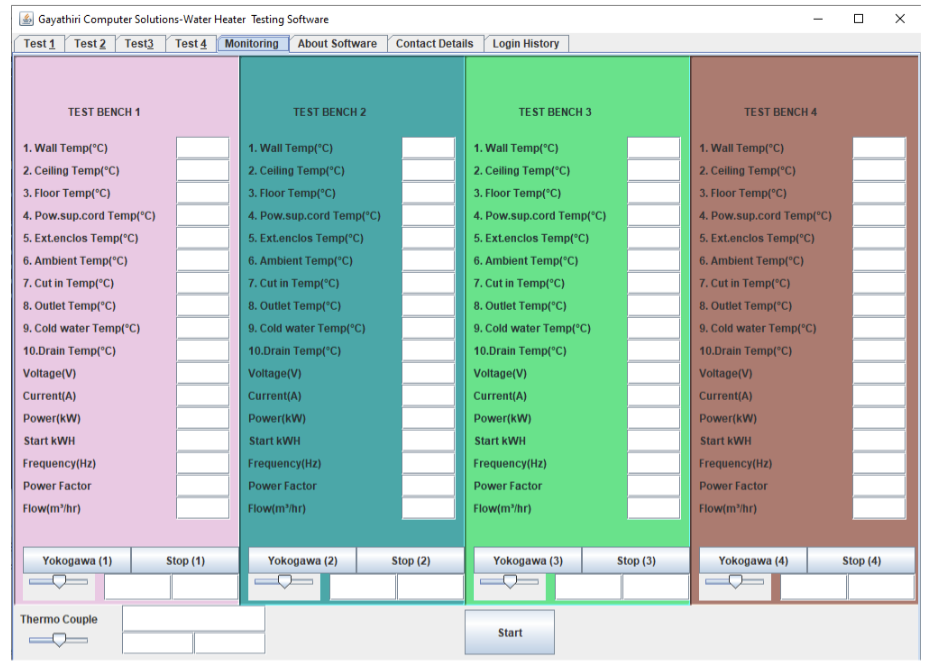

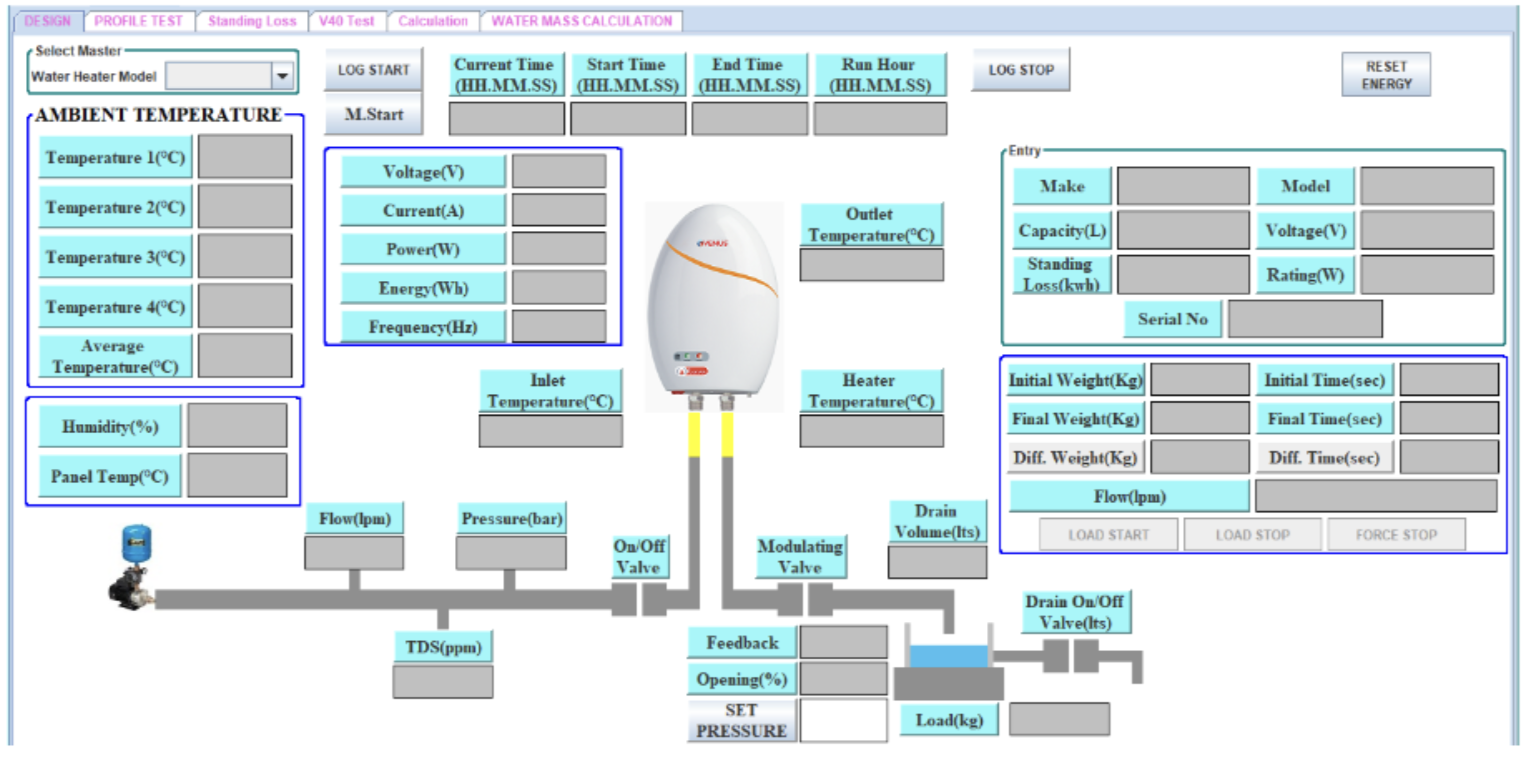

System & software
