IS 374

Automated Fan Air Delivery Testing Systems

Next-level precision in fan performance evaluation. Built to IS 374, it automates every stage of testing for reliable, repeatable, data-backed results.

The Fan Air Delivery Testing System is designed as per IS 374. It consists of a power & control panel, an anemometer set-up and software. Fan speed (rpm), electrical parameters, air velocity, chamber temperature and atmospheric pressure are measured and displayed in the software.

The anemometer’s movement along four diagonals is automated by the software, and readings are captured at the specified points. At the end of the test the AD value and service value are calculated automatically and the report is generated. During the test the voltage is automatically controlled by the software to get precise results.

Features

  • Centralised control unit
  • Easy fan mounting process
  • Real-time monitoring of air velocity, speed, voltage, current, power, temperature, humidity and atmospheric pressure
  • Data acquisition & control solutions based on LabVIEW
  • Automatic voltage control
  • Test report as per IS 374
Gallery

System & software

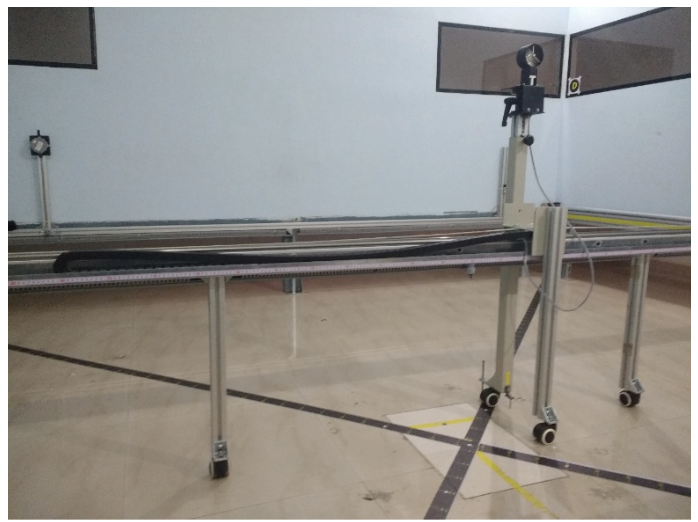

Anemometer fixture with diagonal linear guideEnables precise, automated airflow measurement by moving the sensor smoothly along defined diagonal paths.

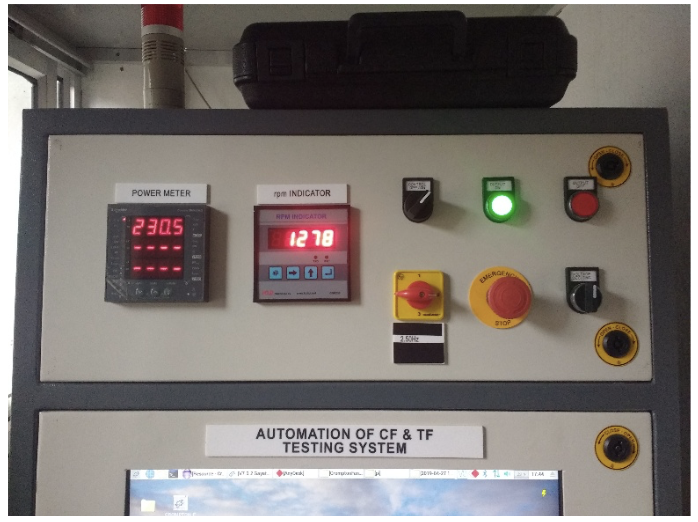

Control panel — front viewPower meter, RPM indicator and automation controls for ceiling & table fan testing.

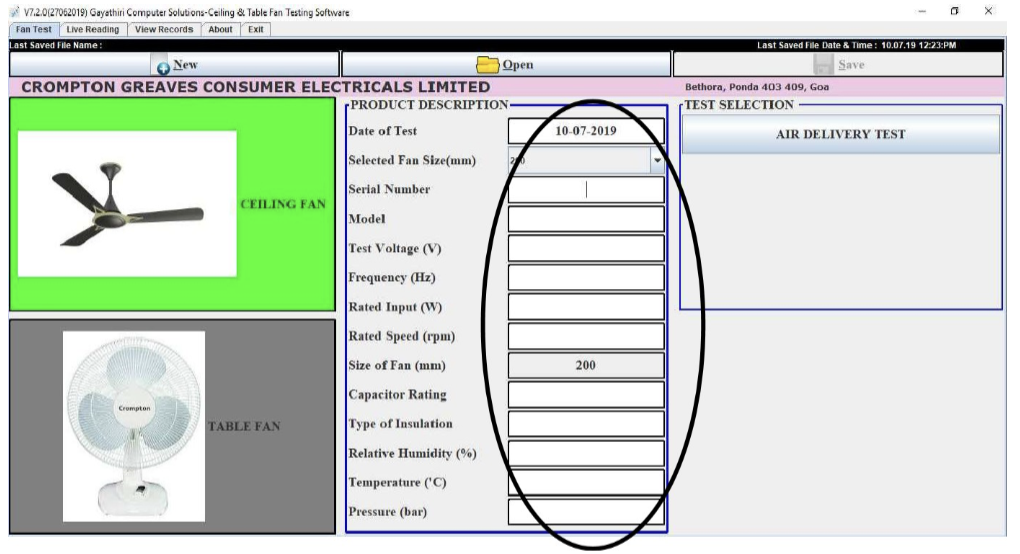

Ceiling & table fan test softwareProduct specifications, test parameters and automated data input for accurate evaluation.

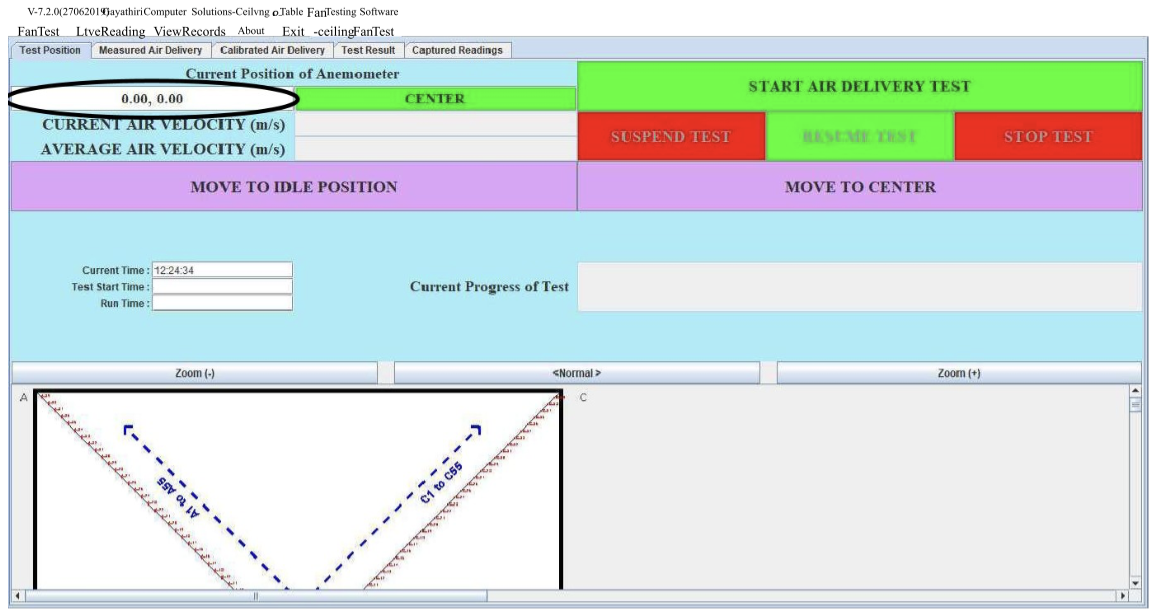

Ceiling fan data monitoringLive anemometer position, air velocity measurements and automated test progress.

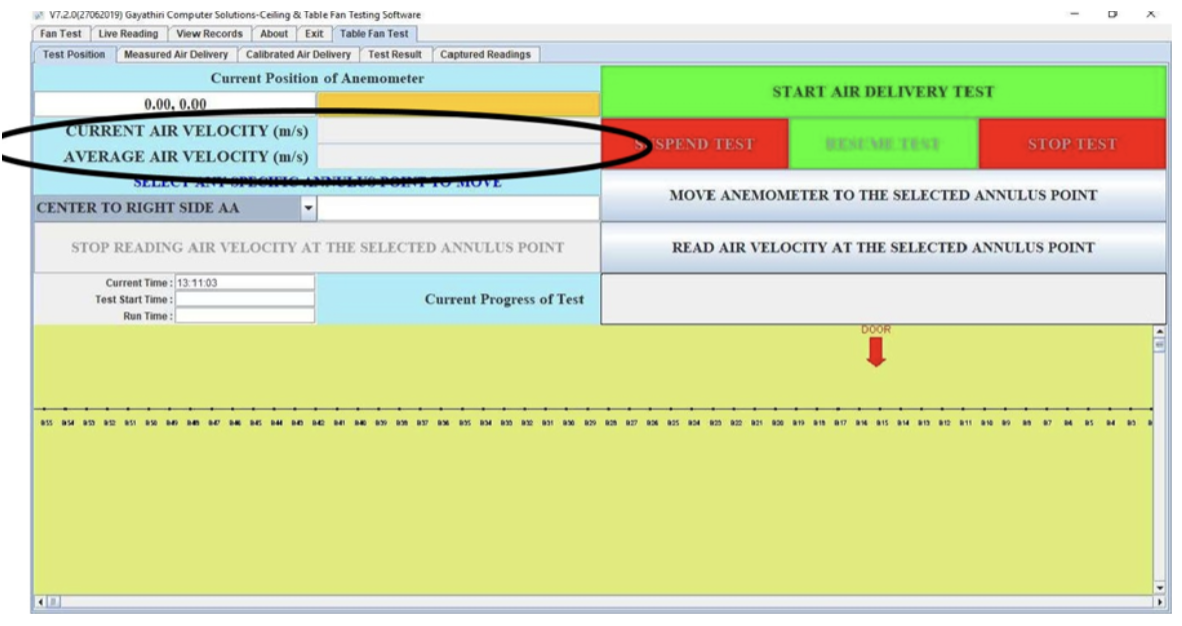

Table fan data monitoringAutomated air-velocity tracking across multiple test points for consistent data capture.
